发动机型号

Engine type

科普192F

整机尺寸(mm)

overall machine size(mm)

2430*720*1390

动力种类

Power types

单缸、四冲程、风冷、立式

履带接地长度(mm)

Trace ground length(mm)

1140

排量(L)

Displacement(L)

0.499

履带宽度(mm)

Trace width(mm)

150

额定功率(kw/rpm)

Rated power (kw/rpm)

7.6/3000

挖掘最大深度(mm)

Max maximum depth(mm)

1300

马力(HP)

Horsepower(HP)

10.3

卸载最大高度(mm)

Unload maximum height(mm)

1600

燃油种类

Fueltypes

Diesel

挖掘最大高度(mm)

Excavmaximum height(mm)

2350

油耗(g/kwh)

Fuel consumption (g/kwh)

275

爬坡能力

Climbing capacity

30°

燃油容量(L)

Fuel Fuel Capacity (L)

5.5

行走速度(km/h)

Walkingspeed (km/h)

0-2.5

机油容量(L)

oil capacity (L)

1.65

铲斗挖掘力(kn)

Bucket excavation force(kn)

6.5

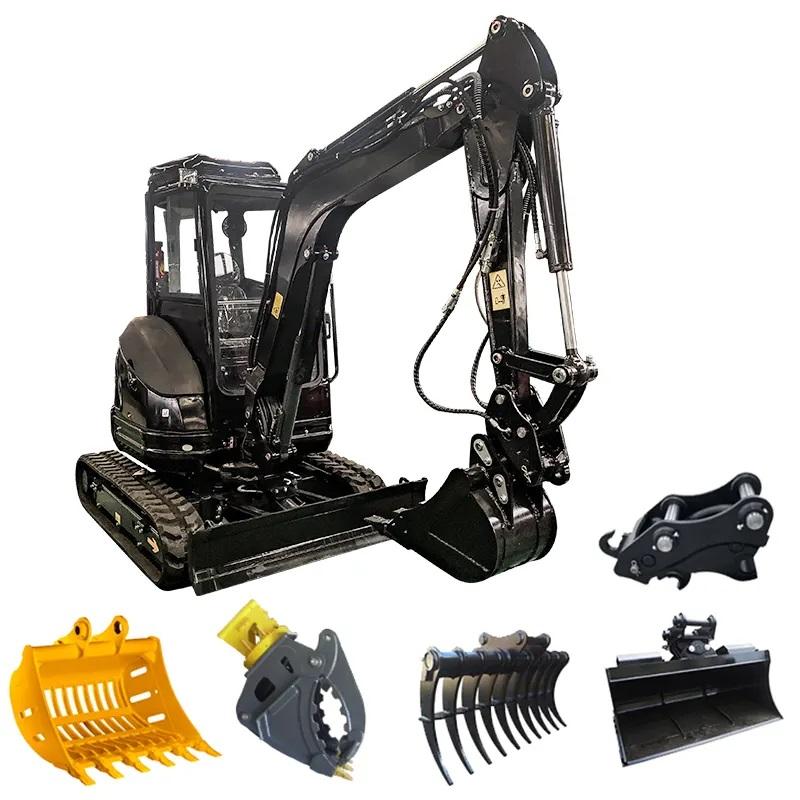

发动机可选配：科普192(欧五)、常柴192、百力通25T2;配置可选：四腿棚

Engine optional:Koop192(Euro 5),Changchai 192,Briggs&Stratton 25T2;Optional configurations:four legged shed
